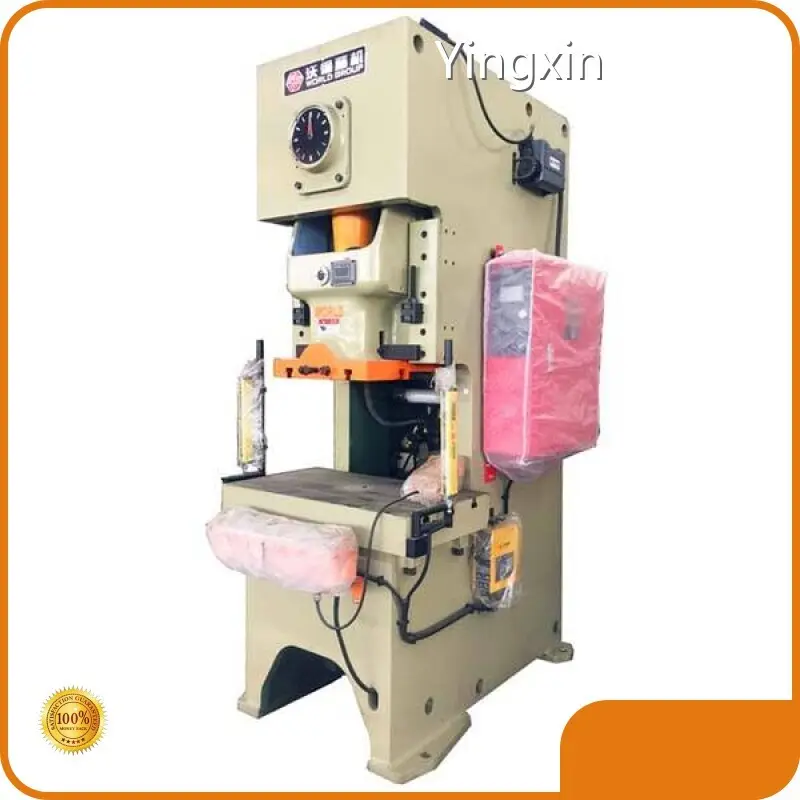

C Frame Press by WORLD-1

Product Overview

- The WORLD C Frame Press is a single crank power press that is popular for sheet metal parts stamping, punching, cutting, bending, trimming, and blanking processes.

- Press tonnages range from 25 tons to 400 tons.

- The press is equipped with features such as PLC, touch screen HMI, wet type pneumatic clutch and brake, safety solenoid valve, hydraulic overload pump, automatic grease lubricant pump, and slide balance cylinders.

Product Features

- World patent wet type pneumatic clutch and brake for power press machine.

- PLC for pneumatic press control with programmable logic control system and automatic grease lubrication pump.

- Hydraulic overload protection system for sensitive action and high reliability.

- Compact structure with a cross-located crankshaft, motor and clutch on the back, steel welded body, two slide balance cylinders, and overload pump, grease pump, and pneumatic system at the back.

- High precision rectangular type slide guides for the C type press with extended rectangular type six faces ram slides with bronze plates.

Product Value

- Long service life, lower noise, cheaper maintenance cost, and easier maintenance compared to dry type clutches.

- Higher reliability and sensitive action with a hydraulic overload protection system instead of conventional mechanical shearing plates.

- Compact structure with high precision slide guides for longer surface life and stability.

Product Advantages

- The press offers a wide range of tonnages for different applications.

- The advanced features such as wet type pneumatic clutch, PLC control, and hydraulic overload protection system ensure safe and efficient operation.

- The compact structure with high precision slide guides provides reliable and stable performance.

Application Scenarios

- The C frame press by WORLD is suitable for sheet metal parts stamping, punching, cutting, bending, trimming, and blanking in various industries.

- It can be used in the production of household appliance parts, automotive components, electronics, and other metal products.

- The press can work as part of an automatic press line with a coil sheet roller feeder or transfer system for full automation.
