C Frame Power Press Manufacturers - - WORLD
Product details of the c frame power press manufacturers
Product Information
As our workers conduct manufacturing by using the latest technologies, WORLD c frame power press manufacturers is exquisite in every detail. The product is functional and with an internationally certified quality. Shanghai Yingxin World Machinery Co., Ltd. has introduced advanced imported equipment for c frame power press manufacturers.
PRODUCT SPECIFICATION
WORLD
| ITEM | CODE | UNIT | JH21-125 | |
| Nominal Capacity | Pe | KN | 1250 | |
| Slide Stroke Length | S | mm | 180 | |
| Slide Strokes | Fixed | spm | 50 | |
| Variable(optional) | spm | 35-65 | ||
| Max. Die Shut Height | H2 | mm | 350 | |
| Die Shut Height Adjustment | t | mm | 90 | |
| Throat Depth | C1 | mm | 350 | |
| Distance Between Uprights | d1 | mm | 670 | |
| Slide Bottom Size | FB | b | mm | 520 |
| LR | a | mm | 620 | |
| Shank Hole Size | Diameter | d | mm | 70 |
| Depth | I | mm | 90 | |
| Table Size | FB | D | mm | 680 |
| LR | C | mm | 1100 | |
| Thickness | H3 | mm | 155 | |
| Table Hole Diameter | ¢ | mm | 200 | |
| Overall Dimensions | FB | A | mm | 2040 |
| LR | B | mm | 1320 | |
| Height | H | mm | 3035 | |
| Motor Power | KW | 11 | ||
| Weight(approximate) | kg | 9550 | ||
More than 30 years experiences, professional R&D team and production team.
3 years warranty for the self-produced wet type pneumatic clutch.
Quick delivery: 10 days for standard machines and 30 days for customized order.
About 80% parts are self-produced. Buyer can get the right parts in farther future.
Bigger manufacturer can provide more assurance for quality and future service.
DETAILS INTRODUCTION
WORLD
Wet type pneumatic clutch Imported clutch disc, NOK seals,
lower noise and maintenance cost, longer service life
Taiwan ISHAN grease pump
Auto grease lubrication for press
Japanese SHOWA hydraulic overload protected pump
Easy reset if overload
Panasonic or Omron PLC
HMI according to the working time or working stroke times.The press has both mechanical
and electrical cam controllers. The precision is 0.1mm.
The press is equipped withSiemens main motor.Higher efficiency levelreduces
energy consumption anddirectly saves costsfor users.
Japanese Toyooki or Taco brand safety solenoid valve
APPLICATIONS
WORLD

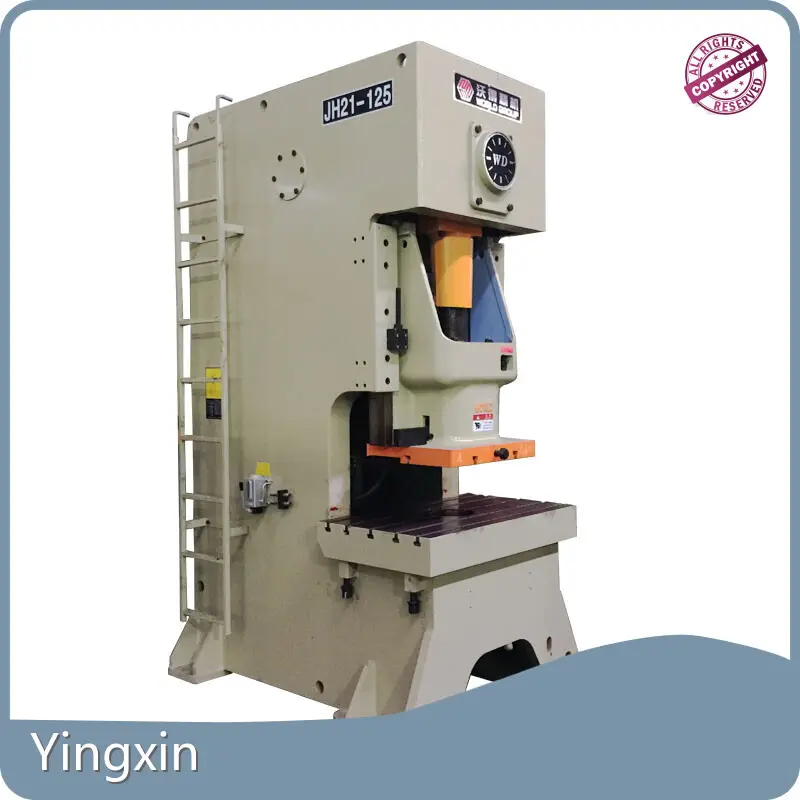

JH21-125 C Frame Pneumatic Press Machine
Adopt to sheet metal punching , cutting, bending, drawing,stamping,blanking and forging process
OUR CUSTOMERS
WORLD
WORLD
World group was established in 1988 as a private company in Danyang City, Jiangsu Province. World has 21 subsidiary companies totally. The main business is to produce and sell power press machines, agriculture machines,construction machines, auto parts and garden tools.
For 30 years, World group has been making suitable progress possible and driving positive change on each industry. World has applied for 573 patents and obtained 122 authorized patents, 404 utility models patents, 36 invention patents and 47 design patents. World is also a registered well-known trademark by SAIC.
With 2016 sales and revenues of $3.692 billion, World group is one of the TOP500 private companies in China and TOP100 companies in Jiangsu Province. Now, World is one of the leading power press manufacturers, the biggest combine harvester manufacturer, the biggest lawn mower manufacturer, and one of the main construction machines manufactures in China.
Company Feature
• Service ability is one of the standards for judging whether an enterprise is successful or not, because it is related to the satisfaction of consumers or clients for the enterprise. Based on the short term goal of customers' needs, we build a comprehensive service system to provide various and quality services. In this way, we could create good service experience for customers.
• In addition to the rich experience in machinery manufacturing, Yingxin can effectively consider the needs of customers to design solutions that satisfy customers. And we provide customers with professional and efficient custom services.
• Yingxin's Power Press Machine Manufacturers,Hydraulic Shearing Machine,Hydraulic Bending Machine greatly improve production efficiency. They are of compact structure, stable performance, reliable quality, high cost performance, and wide application.
• Yingxin was founded in Having struggled hard for years, we are now a machinery manufacturer with certain industry influence.
• Our company's sales network has spread to many provinces, cities and autonomous regions in China. In addition, the products are also exported to Southeast Asia, Australia, North America and other countries and regions.
For more information on Power Press Machine Manufacturers,Hydraulic Shearing Machine,Hydraulic Bending Machine, please consult Yingxin immediately!
