    JX36 Tie Rod Type Double Crank Press Machine

    Navigating the future,

    WORLD the first

    JX36 Tie Rod Type Double Crank Press Machine 6
    JX36 Tie Rod Type Double Crank Press Machine 7
    JX36 Tie Rod Type Double Crank Press Machine 8

    Amazing!!!

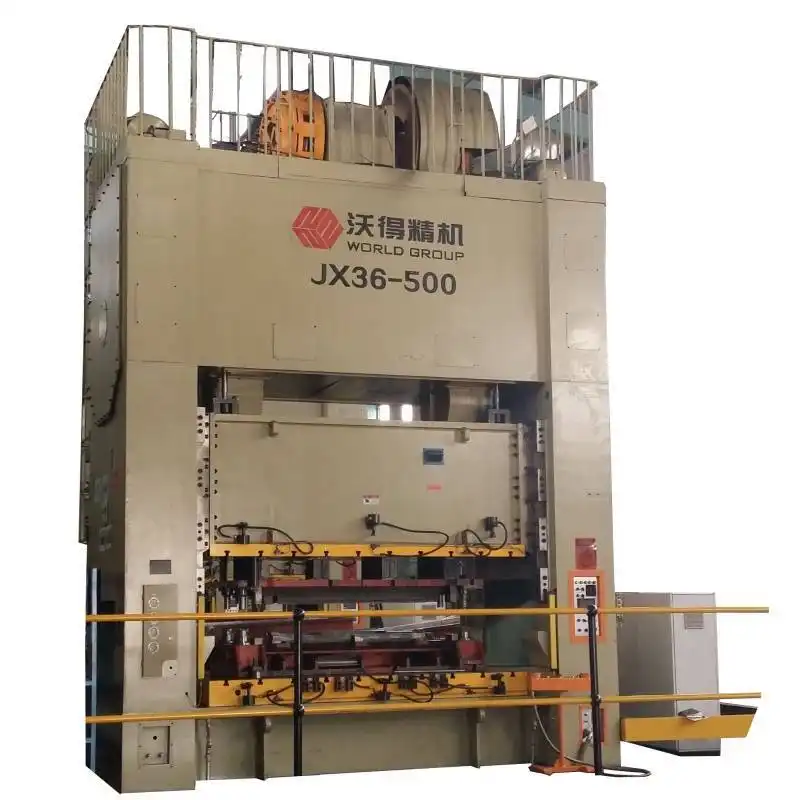

    JX36Model Presses

    Tie rod type double crank power press with big table size, suitable for big sheet stamping, progressive die stamping and multi-station die stamping. JX36 automatic press machines have tonnages from 400ton to 1250to, table length maximum to 4000mm and width maximum to 2000mm. Retractable bolster is optional for more automatic stamping production. Press crown, columns, slide ano base are fixed by tie rods, easy for disassembling shipment.

    1F

    Benefits & Features

    Read More
    JX36 Tie Rod Type Double Crank Press Machine 9
    Strong structure of tie rod double crank stamping press

    1. The main structure is close type H frame, including the crown, slide, columns and base. 4 pieces tie rods fix all the parts tightly.
    2. Location pins are used to install the crown, columns and base to ensure the precise framelocation.
    3. The crown, slide, base, columns and bolster are all box type welded structures with temperature treatment and sand blasting treatment. High rigidity and nice surface for painting
    4. Optimized structure design ensures the stability and precision during future long time working.

    5. Enough maintenance and inspection space are considered in the original foundation design.

    JX36 Tie Rod Type Double Crank Press Machine 10
    Double crank power press transmission system

    1. Separated clutch and brake, dry clutch.
    2. With dual-safety solenoid valve.
    3. Both electric cam controller and mechanical cam controller, dual safety.
    4. Bearing inside with lubrication.
    5. Floating type clutch block. Adjust the gaskets longer the service life of clutch blocks.

    JX36 Tie Rod Type Double Crank Press Machine 11
    Automatic options for gear press machine

    1. Single movable table, double left to right movable working tables, T type movable bolsters.
    2.Air cushion, fixed stroke or adjustable stroke length, with or without lock function
    3. Hydraulic die clamps
    4. Tonnage monitor
    5. Transfer robots

    2F

    Technical Parameters

    Read More

    ITEM


    JX36-400

    JX36-500

    JX36-630

    JX36-800

    JX36-1000

    Nominal Capacity

    KN

    400

    5000

    6300

    8000

    10000

    Rated Tonnage Point

    mm

    9

    12

    12

    12

    12

    Stoke Length

    mm

    300

    300

    350

    350

    400

    Stroke Speed

    spm

    20-35

    20-35

    20-30

    15-25

    15-25

    Max. Die Shut Height

    mm

    650

    650

    700

    800

    900

    Die Shut Height Adjustment

    mm

    200

    200

    250

    250

    250

    Table Size (FBxLR)

    mm

    1300×3000

    1500×3000

    1500×3600

    2000×4000

    2000×4000

    Table Thickness

    mm

    220

    220

    250

    250

    250

    Slide Bottom Size (FB-LR)

    mm

    1300×3000

    1500×3000

    1500×3600

    2000×4000

    2000×4000

    Window Opening (FBxH)

    mm

    1000×650

    1100×650

    1200×700

    1600×800

    1600×900

    Table Height

    mm

    710

    710

    710

    710

    710

    Motor Power

    KW

    45

    55

    75

    75

    90

    Overall Dimensions (LxWxH)

    mm


    3330x4650x

    7250

    3800x5400x

    7700

    4200x6150x

    9200

    4600x6150x

    9900

    Approximate Weight

    T

    80

    90

    120

    150

    190


    3F

    Our Factory

    Read More
    Professional Power Press Manufactuer
    Group profile

    Yingxin World Machinery was established in Shanghai in 2009 authorized by World Group to act as an exporting center for all World brand machines including the power press machines, hydraulic shearing machines, hydraulic press brakes and automatic accessories.World Precise Machinery (China) is the biggest branch factory of World Group which is focusing on producing and technology researching of power press machines. The original factory was built in 1953 to produce small eccentric punching machines for new China industry.World Group bought this factory in 1998 and expanded the production capacity and the product ranges.
