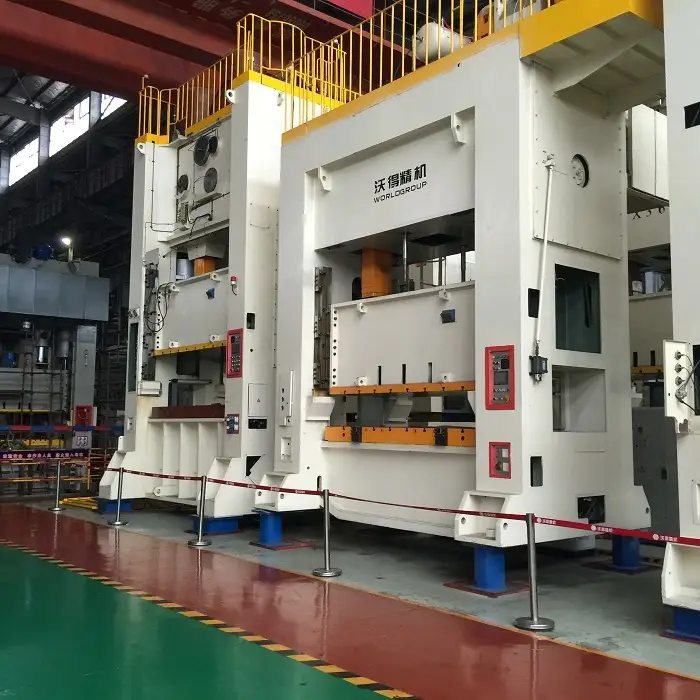

JX36-500 H Frame Double Crank 500 Ton Punching Machine for Spiral Binding

Inquiry

    oops...!

    no product data.

    Go to homepage
    Write a Review
    Supply Ability
    1000 Unit/Units per Year
    Start Port
    Shanghai China
    Material
    Metal
    Delivery Time
    120 days
    Certification
    CE, CCC
    Availability
    OEM






    Item

    JX36-400
    JX36-500
    JX36-630
    JX36-800
    JX36-1000
    Nominal Capacity
    kn
    400
    5000
    6300
    8000
    10000
    Rated Tonnage Point
    mm
    9
    12
    12
    12
    12
    Stoke Length
    mm
    300
    300
    350
    350
    400
    Stroke Speed
    spm
    20-35
    20-35
    20-30
    15-25
    15-25
    Max. Die Shut Height
    mm
    650
    650
    700
    800
    900
    Die Shut Height Adjustment
    mm
    200
    200
    250
    250
    250
    Table Size (FBxLR)
    mm
    1300×3000
    1500×3000
    1500×3600
    2000×4000
    2000×4000
    Table Thickness
    mm
    220
    220
    250
    250
    250
    Slide Bottom Size (FB-LR)
    mm
    1300×3000
    1500×3000
    1500×3600
    2000×4000
    2000×4000
    Window Opening (FBxH)
    mm
    1000×650
    1100×650
    1200×700
    1600×800
    1600×900
    Table Height
    mm
    710
    710
    710
    710
    710
    Motor Power
    kw
    45
    55
    75
    75
    90
    Overall Dimensions (LxWxH)
    mm

    3330x4650x
    7250
    3800x5400x
    7700
    4200x6150x
    9200
    4600x6150x
    9900
    Approximate Weight
    t
    80
    90
    120
    150
    190
