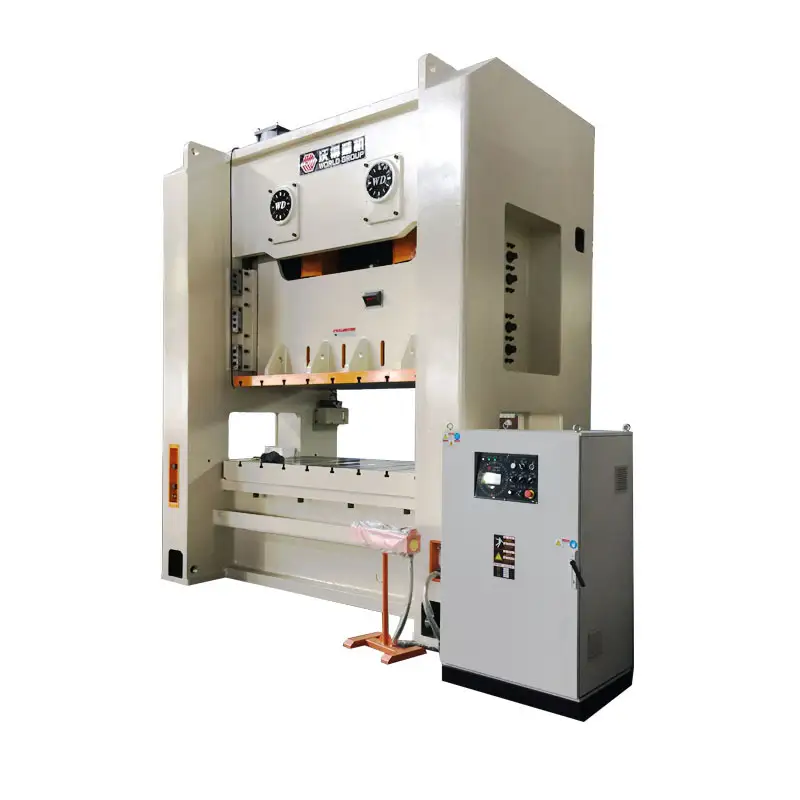

JW36 H frame double crank power press machine(mechanical press, press machine,punching machine,stamping press), capacity from 110ton to 630ton, welded steel body, PLC control, wet clutch, hydraulic overload protected, auto lubricated, touch screen control. Bigger table better for big sheet stamping and progressive die stamping process. The press can work with NC feeder and transfer system for automatic press line.
PRODUCT SPECIFICATION
WORLD
Steel welded body, tempering treatment, high rigidity, accuracy and stability.
Cross located crankshaft, compact structure.
The crankshaft undergoes grinding treatment after high frequency quenching.
The crankshaft undergoes grinding treatment after high frequency quenching.
ITEM | CODE | UNIT | JW36-315 | |
Nominal Capacity | KN | 3150 | ||
Slide Stroke Length | S | mm | 280 | |
Slide Stroke Speed | Fixed | spm | 30 | |
Variable | spm | 20-35 | ||
Max. Die Shut Height | H2 | mm | 550 | |
Die Shut Height Adjustment | t | mm | 120 | |
Side Window Size | F-B | E | mm | 950 |
Height | F | mm | 460 | |
Distance Between Uprights | G | mm | 2570 | |
Table Size | F-B | D | mm | 1000 |
L-R | C | mm | 2500 | |
Thickness | H3 | mm | 190 | |
Slide Bottom Size | F-B | b | mm | 900 |
L-R | a | mm | 2200 | |
Table Surface Height | H1 | mm | 1285 | |
Overall Dimensions | F-B | A | mm | 3000 |
L-R | B | mm | 3450 | |
Height | H | mm | 4900 | |
Motor Power | KW | 37 | ||
Weight(approximate) | kg | 43000 |
DETAILS INTRODUCTION
WORLD
JW36 straight side power press uses H frame steel welded body which is under heat treatment and ball ballasting treatment to release the welding stress.Precision is already ensured during machining and just need to fine adjustment when installation or future maintenance.
JW36 H frame double crank punch press machine has a bigger table which is more suitable for progressive die stamping and big sheet metal forming. The upper surface of press working table is grinded by high performance grinding machine for better flatness.
Hydraulic Overload Protected Pump
The press is standard equipped with Japanese SHOWA hydraulic overload pump. Normallythe system is set as 110% of the nominal capacity.The press will stop immediately once it is overload than 110% to protect both the press and the die.
PLC central control system makes the press easily operation and inspection. HMI has functions of system setting, I/O monitor counter and preset counter. The operator can set the lubrication frequency by the HMI according to the working time or working stroke times.
Schneider/Siemens Electric Parts
