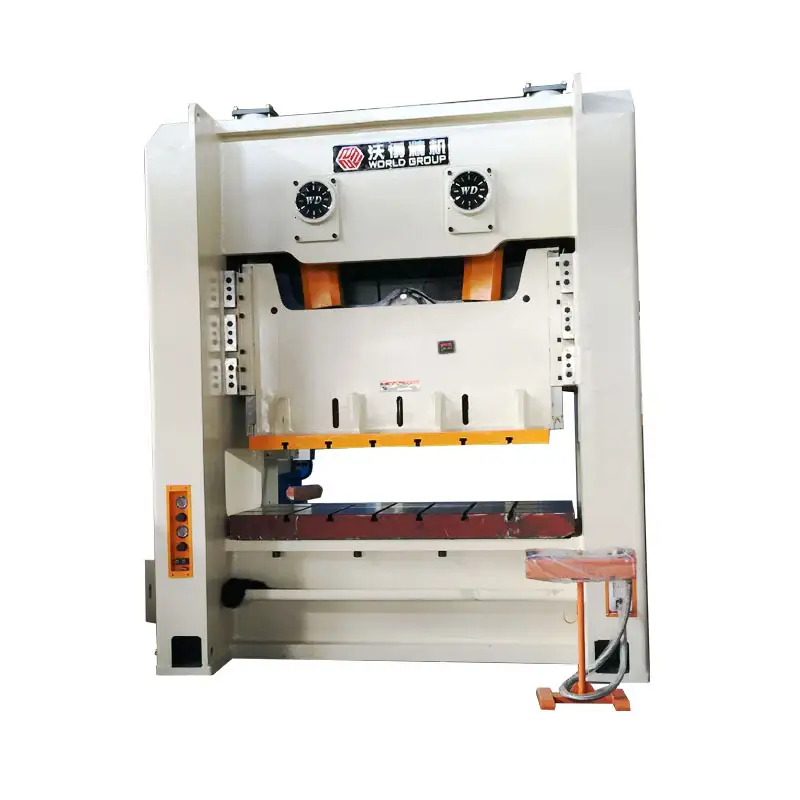

    JW36-160 Pneumatic 160 Ton Stamping Machines for Metal Plate

    JW36 H frame double crank power press machine(mechanical press, press machine,punching machine,stamping press), capacity from 110ton to 630ton, welded steel body, PLC control, wet clutch, hydraulic overload protected, auto lubricated, touch screen control. Bigger table better for big sheet stamping and progressive die stamping process. The press can work with NC feeder and transfer system for automatic press line.

    PRODUCT SPECIFICATION

    WORLD

    JW36-160 Closed Type Pneumatic 160 Ton Pressing Punching Machines 9
    • Steel welded body, tempering treatment, high rigidity, accuracy and stability.

    • Cross located crankshaft, compact structure.

    • The crankshaft undergoes grinding treatment after high frequency quenching.

    • The crankshaft undergoes grinding treatment after high frequency quenching.

    • PLC control and imported safety dual valve.
    • Pneumatic dual balance cylinder, which balances the slide block and ounch weight to reduce noise and impact.
    • Wet clutch and hydraulic overload protected pump.
    • Both auto grease lubrication system and manual thin oil lubrication system.
    ITEMCODEUNITJW36-160
    Nominal Capacity
    KN1600
    Slide Stroke LengthSmm200
    Slide Stroke SpeedFixed
    spm45
    Variable
    spm35-55
    Max. Die Shut HeightH2mm450
    Die Shut Height Adjustmenttmm100
    Side Window SizeF-BEmm800
    HeightFmm400
    Distance Between UprightsGmm1900
    Table SizeF-BDmm760
    L-RCmm1800
    ThicknessH3mm150
    Slide Bottom SizeF-Bbmm700
    L-Ramm1500
    Table Surface HeightH1mm1035
    Overall DimensionsF-BAmm2400
    L-RBmm2650
    HeightHmm3950
    Motor Power
    KW18.5
    Weight(approximate)
    kg22000


    DETAILS INTRODUCTION

    WORLD

    JW36-160 Closed Type Pneumatic 160 Ton Pressing Punching Machines 10
    H Frame Body with Eight Surfaces Slid Guides

    JW36 straight side power press uses H frame steel welded body which is under heat treatment and ball ballasting treatment to release the welding stress.Precision is already ensured during machining and just need to fine adjustment when installation or future maintenance.

    JW36-160 Closed Type Pneumatic 160 Ton Pressing Punching Machines 11
    Bigger Table

    JW36 H frame double crank punch press machine has a bigger table which is more suitable for progressive die stamping and big sheet metal forming. The upper surface of press working table is grinded by high performance grinding machine for better flatness.

    JW36-160 Closed Type Pneumatic 160 Ton Pressing Punching Machines 12

    Hydraulic Overload Protected Pump

    The press is standard equipped with Japanese SHOWA hydraulic overload pump. Normallythe system is set as 110% of the nominal capacity.The press will stop immediately once it is overload than 110% to protect both the press and the die.

    JW36-160 Closed Type Pneumatic 160 Ton Pressing Punching Machines 13
    PLC Control with HMI

    PLC central control system makes the press easily operation and inspection. HMI has functions of system setting, I/O monitor counter and preset counter. The operator can set the lubrication frequency by the HMI according to the working time or working stroke times.

    JW36-160 Closed Type Pneumatic 160 Ton Pressing Punching Machines 14
    PLC control system
    JW36-160 Closed Type Pneumatic 160 Ton Pressing Punching Machines 15
    Siemens Motor
    JW36-160 Closed Type Pneumatic 160 Ton Pressing Punching Machines 16

    Schneider/Siemens Electric Parts

    APPLICATIONS

    WORLD

    JH21-125 C Frame Pneumatic Press Machine

    Adopt to sheet metal punching , cutting, bending, drawing,stamping,blanking and forging process
