JW31-400Ton H Type Automatic Power Press Machines Manufacturer - WORLD

Place of Origin:

Jiangsu China

Payment:

L/C, T/T

MOQ:

Model:

JW31-400

Brand:

WORLD

Inquiry

Write a Review

Supply Ability

2000 Unit/Units per Year

Start Port

Shanghai China

Material

Metal

Delivery Time

60 days

Certification

CE, CCC

Availability

OEM

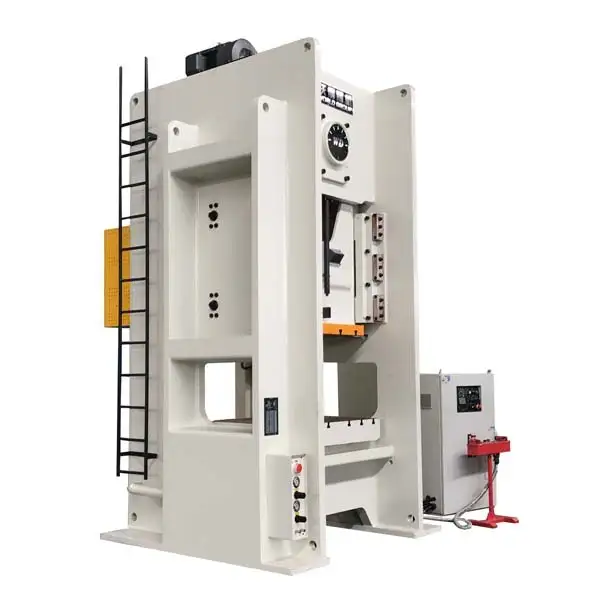

WORLD presents the JW31-400Ton H Type Automatic Power Press Machine, a pinnacle of precision engineering in metalworking. With a formidable 400-ton capacity, this machine is engineered for efficiency and reliability in heavy-duty stamping operations.

Designed for seamless automation, the H Type configuration enhances productivity by minimizing setup times and optimizing production workflows. Its advanced control system ensures precise operation, allowing for consistent and high-quality output.

Crafted with durability in mind, this power press machine features a robust frame and components built to withstand the rigors of continuous operation. Safety features such as overload protection and emergency stop mechanisms prioritize operator well-being.

Whether for automotive parts, electronics, or industrial components, the JW31-400Ton H Type Automatic Power Press Machine from WORLD is the solution for manufacturers seeking unparalleled performance and efficiency in metal forming processes.

Item		Code	Unit	JW31-315	JW31-400	JW31-500
Nominal Capacity		Pe	kn	3150	4000	5000
Slide Stroke		s	mm	220	250	250
Slide Stroke Speed	Fixed	n	spm	30	25	20
Slide Stroke Speed	Variable (Optional)	n	spm	20-35	20-30	15-25
Max. Die Shut Height		H2	mm	550	600	650
Die Shut Height Adjustment		t	mm	120	120	120
Side Window Size	F-B	E	mm	850	900	1000
Side Window Size	Height	F	mm	480	520	650
Distance Between Uprights		G	mm	1350	1450	1650
Table Size	F-B	D	mm	850	900	1000
	L-R	C	mm	1250	1350	1500
	Thickness	H3	mm	190	200	220
Table Hole Diameter			mm	220	220	220
Slide Bottom Size	F-B	b	mm	800	850	950
Slide Bottom Size	L-R	a	mm	1000	1100	1250
Table Surface Height		H1	mm	1215	1225	1225
Overall Dimensions	F-B	A	mm	2600	2700	3100
	L-R	B	mm	2200	2370	2600
	Height	H	mm	4550	4900	5400
Motor Power			kw	30	37	45
Weight (Approximate)			kg	30000	36500	47500
