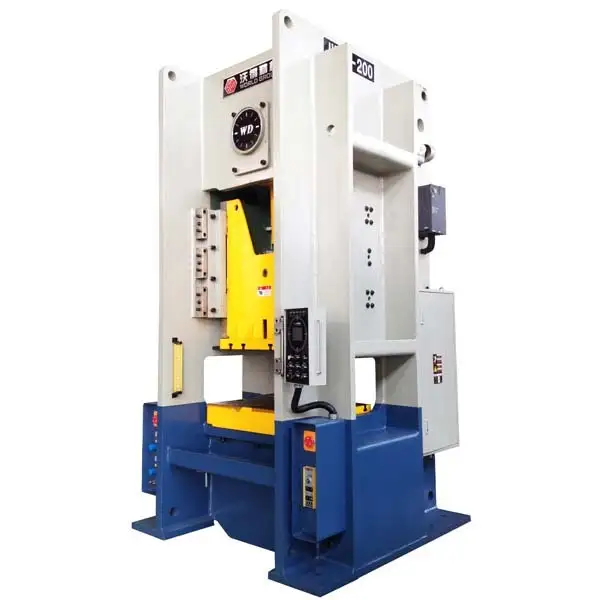

JW31 Model Presses
JW31 straight side single crank power press machines have tonnage range from 160ton to 630ton. Straight press is more suitable for metal cutting and blanking process, such as hinge plate cutting. 8 faces slide guides ensure higher precision. H frame body has more strength and rigidness. This press machine is also suitable for aluminum parts cold forging, such as house for electric condensor.
Steel plate welded H frame body, annealing treatment and then sand blasting. This process help to release the welding stress and get a better surface for painting. Ram of the press machine is moving inside the body. Other components such as motor, clutch, lubricatior system are all inside the frame. Compact structure and nice apperance.
This H frame pess adopts ram with 8 faces guides and the ram is ahways moving along the center of the press. Ram is casting iron which is machining by cnc machine center for higher precision. Lenathened bronze plates are fixed on press body. Grease lubrication betweer the bronze plates and the slid gibs.
1. This crank press machine adopts world standard wet clutch. Just need to change the lubricant oil every half year for maintenance.
2. Hydraulic overload protection system is standard equipped to this single crank press machine. It is easy to reset the system by a swith on the control panel. Only needs one minute to reset the press.
3. There is a flat motor on the press ram back. This motor works with the worm gear system inside the ram to adjust the shut height.There is a button and a switcn on the T stand to control the slide adjustment
4. Automatic central lubrication system for press machine. An electric pump will pump the grease from the tank and distribute the areae to all the lubrication points.
ITEM | CODE | UNIT | JW31-160 | JW31-200 | JW31-250 | JW31-315 | JW31-400 | JW31-500 | |
Nominal Capacity | Pe | KN | 1600 | 2000 | 2500 | 3150 | 4000 | 5000 | |
Slide Stroke | s | mm | 180 | 200 | 220 | 220 | 250 | 250 | |
Slide Stroke Speed | Fixed | n | spm | 45 | 35 | 30 | 30 | 25 | 20 |
Variable(optional) | n | spm | 35-55 | 35-55 | 20-35 | 20-35 | 20-30 | 15-25 | |
Max. Die Shut Height | H2 | mm | 400 | 450 | 500 | 550 | 600 | 650 | |
Die Shut Height Adjustment | t | mm | 110 | 110 | 120 | 120 | 120 | 120 | |
Side Window Size | F-B | E | mm | 650 | 750 | 800 | 850 | 900 | 1000 |
Height | F | mm | 350 | 420 | 430 | 480 | 520 | 650 | |
Distance Between Uprights | G | mm | 1100 | 1200 | 1300 | 1350 | 1450 | 1650 | |
Table Size | F-B | D | mm | 650 | 750 | 800 | 850 | 900 | 1000 |
L-R | C | mm | 1000 | 1100 | 1200 | 1250 | 1350 | 1500 | |
Thickness | H3 | mm | 165 | 180 | 190 | 190 | 200 | 220 | |
Table Hole Diameter | mm | 180 | 200 | 200 | 220 | 220 | 220 | ||
Slide Bottom Size | F-B | b | mm | 600 | 700 | 750 | 800 | 850 | 950 |
L-R | a | mm | 750 | 850 | 950 | 1000 | 1100 | 1250 | |
Table Surface Height | H1 | mm | 1005 | 1115 | 1205 | 1215 | 1225 | 1225 | |
Overall Dimensions | F-B | A | mm | 2200 | 2300 | 2500 | 2600 | 2700 | 3100 |
L-R | B | mm | 1780 | 2000 | 2050 | 2200 | 2370 | 2600 | |
Height | H | mm | 3800 | 4200 | 4500 | 4550 | 4900 | 5400 | |
Motor Power | KW | 15 | 18.5 | 22 | 30 | 37 | 45 | ||
Weight(approximate) | kg | 16000 | 22000 | 27500 | 30000 | 36500 | 47500 |
Options List
Die quick change device Piston type die cushion Inverter to adjust stroke speed Light curtain for safety
Yingxin World Machinery was established in Shanghai in 2009 authorized by World Group to act as an exporting center for all World brand machines including the power press machines, hydraulic shearing machines, hydraulic press brakes and automatic accessories.World Precise Machinery (China) is the biggest branch factory of World Group which is focusing on producing and technology researching of power press machines. The original factory was built in 1953 to produce small eccentric punching machines for new China industry.World Group bought this factory in 1998 and expanded the production capacity and the product ranges.
