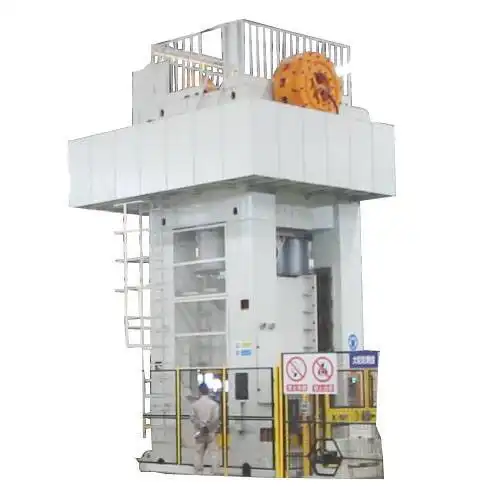

JS31 Straight Side Single Point Gear Press

    oops...!

    no product data.

    Go to homepage
    Supply Ability
    1000 Unit/Units per Year
    Start Port
    Shanghai China
    Material
    Metal
    Delivery Time
    120 days
    Certification
    CE, CCC
    Availability
    OEM

    WORLD

    JS31 Straight Side Single Point Gear Press

    Navigating the future,

    WORLD the first

    JS31 Straight Side Single Point Gear Press 6
    JS31 Straight Side Single Point Gear Press 7

    Amazing!!!

    JS31 Model Presses

    Single point h frame eccentric gear press is suitable for metal parts cutting, punching, drawing and blanking. The gear press has long stroke length with high energy. It is widely used for car rim, pressure cooker and steel bottle production. This eccentric gear single point press has capacity range from 125ton to 2000ton. Big press structure is tie rod type, while small size press can be mono blork.

    1F

    Benefits & Features

    Read More
    JS31 Straight Side Single Point Gear Press 8
    Strong H frame structure of single point eccentic gear press

    Smaller presses such as 160ton. 250ton, 315ton and 400ton presses bodies are mono block type casting irons.

    Bigger presses bodies are tie rod type steel welded type. Dry type clutch is on the top and slide moves along the 8 faces quides in the middle of the frame

    JS31 Straight Side Single Point Gear Press 9
    Metal forming applications of eccentric gear drive press

    .metal forming of pots
    .metal forming of car rims
    .hot forging of bearing rings
    .hot forging of valves
    .metal forming and drawing of cups

    JS31 Straight Side Single Point Gear Press 10
    Single point eccetric gear transmission

    eccentric gear transmission can provide longer stroke length than crank press. The JS eccetric gear press has more powerful engergy

    than conventional crank press. which is more suitable for metal sheet drawing processSeparate type dry clutch and brake. Clutch block

    is changable for future maintenance.Clutch block clearance could be adjustable to ensure the service life more than 5 vears High strength

    alloy steel welded type gears. Geat teeth are grinded for lower noise. High speed gears are herrinabone type.

    2F

    Technical Parameters

    Read More

    Item

    Unit

    JS31-125

    JS31-160

    JS31-250

    JS31-315

    JS31-400A

    JS31-500

    JS31-630

    JS31-800

    Nominal capacity

    KN

    1250

    1600

    2500

    3150

    4000

    5000

    6300

    8000

    Nominal stroke

    mm

    7

    8

    10

    12

    13

    13

    13

    13

    Slide stroke length

    mm

    130

    160

    200

    220

    250

    250

    400

    400

    Stroke speed

    times/min

    35

    32

    28

    28

    25

    25

    16

    14

    Max. die shut height

    mm

    350

    385

    460

    520

    530

    530

    830

    750

    Die height adjustment

    mm

    85

    140

    160

    160

    160

    160

    300

    300

    Slide bottom size

    L-R

    mm

    550

    510

    700

    700

    810

    810

    1600

    1600


    F-B

    mm

    550

    560

    670

    670

    810

    810

    1450

    1500

    Size of worktable

    L-R

    mm

    700

    710

    850

    850

    990

    990

    1600

    1600


    F-B

    mm

    750

    790

    900

    900

    1060

    1060

    1450

    1600

    Knock out pressure

    KN

    60

    80

    120

    160

    200

    250

    300

    500

    Motor Power

    KW

    11

    15

    22

    30

    37

    45

    55

    75

    Height above floor

    mm

    4000

    4325

    4870

    4950

    5450

    5540

    7710

    8360

    Weight(Approximate)

    TON

    11.2

    12.8

    21.5

    23.82

    40.5

    42

    62

    12500
