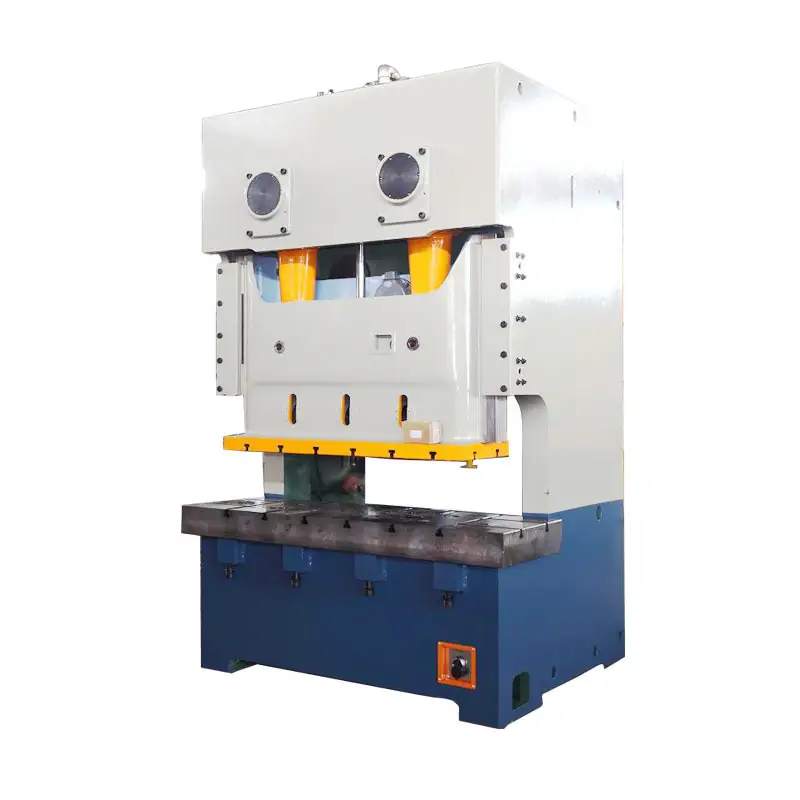

    JH25-110 Double Crank Mechanical Power Press Punching Machine

    JH25 C frame double crank power press (press machine, punching press, punching machine,mechanical power press, stamping press), capacity from 110ton to 315ton, PLC control, wet clutch, hydraulic overload protected, both mechanical and electric cam control, auto lubricated.Bigger table better for big sheet stamping or progressive die stamping process. Light curtain, inverter, air cushion are optional.

    WET CLUTCH

    HYDRAULIC OVERLOAD PROTECTING PUMP

    AUTO LUBRICATION SYSTEM

    PRODUCT SPECIFICATION

    WORLD

    JH25-110  double crank mechanical power press punching machine 3
    • Steel welded body, tempering treatment, high rigidity, accuracy and stability.

    • Cross located crankshaft, compact structure.

    • The crankshaft undergoes grinding treatment after high frequency quenching.

    • The crankshaft undergoes grinding treatment after high frequency quenching.

    • PLC control and imported safety dual valve.
    • Pneumatic dual balance cylinder, which balances the slide block and ounch weight to reduce noise and impact.
    • Wet clutch and hydraulic overload protected pump.
    • Both auto grease lubrication system and manual thin oil lubrication system.
    ITEMCODEUNITJH25-110
    Nominal CapacityPeKN1100
    Stroke LengthSmm180
    Stroke SpeedFixed
    spm50
    Variable(optional)
    spm35-55
    Max. Die Shut HeightH2mm400
    Die Shut Height Adjustmenttmm90
    Throat DepthGmm350
    Distance Between UprightsNmm1470
    Table SizeF-BDmm680
    L-RCmm1880
    ThicknessH3mm155
    Slide Bottom SizeF-Bbmm520
    L-Ramm1400
    Table Surface HeightH1mm900
    Overall DimensionsF-BAmm1820
    L-RBmm1970
    HeightHmm3200
    Motor Power
    KW11
    Weight(approximate)
    kg14000


    DETAILS INTRODUCTION

    WORLD

    JH25-110  double crank mechanical power press punching machine 4

    Bigger Table for Sheet Metal Proressive Die Stamping

    JH25 C frame double crank punching press has a wider table which is more suitable for progressive die stamping. Double cross located crankshafts reverse rotated to eliminate each lateral force. Pneumatic slide balance cylinder is equipped to balance the slide weight and upper die weight.

    JH25-110  double crank mechanical power press punching machine 5

    Wet Type Pneumatic Clutch and Brake.

    JH25 Stamping Press with pneumatic wet clutch can work as continuous, inches or single stroke,more choices for operators. Each clutch is under balance testing and temperature testing before assembling to the press. High quality friction discs ensure long service life.

    JH25-110  double crank mechanical power press punching machine 6

    Hydraulic Overload Protected Pump

    The press is standard equipped with Japanese SHOWA hydraulic overload pump. Normallythe system is set as 110% of the nominal capacity.The press will stop immediately once it is overload than 110% to protect both the press and the die.

    JH25-110  double crank mechanical power press punching machine 7
    PLC Control with HMI

    PLC central control system makes the press easily operation and inspection. HMI has functions of system setting, I/O monitor counter and preset counter. The operator can set the lubrication frequency by the HMI according to the working time or working stroke times.

    JH25-110  double crank mechanical power press punching machine 8
    PLC control system
    JH25-110  double crank mechanical power press punching machine 9
    Siemens Motor
    JH25-110  double crank mechanical power press punching machine 10

    Schneider/Siemens Electric Parts

    APPLICATIONS

    WORLD

    JH21-125 C Frame Pneumatic Press Machine

    Adopt to sheet metal punching , cutting, bending, drawing,stamping,blanking and forging process
