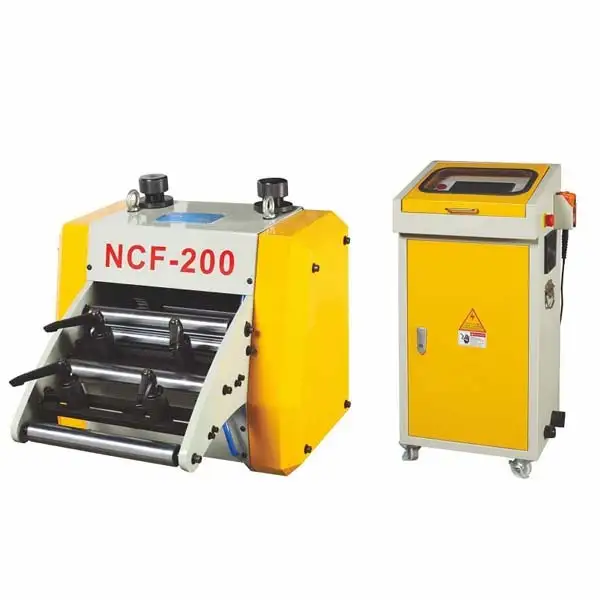

High-quality Automatic Metal Strip NC Feeder for Sale
PRODUCT SPECIFICATION
WORLD
Aiming at the arrival of hi-tech industry, it is controlled by computer closed-circuit feedback system.
So that the precision can maintain within +/-0.03mm.
It can input 20 groups of different feeding length, each group provides " punching for 999 times to satisfy the processing
and production of special products (option).
It can input 3 phases manual speed, which can let used operate more easily
and feed materials more accuracy.
It can set up release angle quickly, only match cam signal of
and adjusted feed thickness can done.
| Model | NCF-100A NCF-100B NCF-100C | NCF-200A NCF-200B NCF-200C | NCF-300A NCF-300B NCF-300C | NCF-400A NCF-400B NCF-400C | NCF-400A NCF-400B NCF-400C | ||
| Material Width(mm) | 100 | 200 | 300 | 400 | 500 | ||
| Material Thickness (mm) | 1B | 0.2-2.2 | 0.2-2.2 | 0.2-2.2 | 0.2-2.2 | 0.2-2.2 | |
| 2B | 0.2-3.5 | 0.2-3.5 | 0.2-3.5 | 0.2-3.5 | 0.2-3.5 | ||
| 3B | 0.2-4.5 | 0.2-4.5 | 0.2-4.5 | 0.2-4.5 | 0.2-4.5 | ||
| Feed Length | 9999.99 | ||||||
| Max.Line Speed (m/min) | 20 (can be customized) | ||||||
| Feed Accuracy (mm) | ±0.03 | ||||||
OUR CUSTOMERS
WORLD
WORLD
World group was established in 1988 as a private company in Danyang City, Jiangsu Province. World has 21 subsidiary companies totally. The main business is to produce and sell power press machines, agriculture machines,construction machines, auto parts and garden tools.
For 30 years, World group has been making suitable progress possible and driving positive change on each industry. World has applied for 573 patents and obtained 122 authorized patents, 404 utility models patents, 36 invention patents and 47 design patents. World is also a registered well-known trademark by SAIC.
With 2016 sales and revenues of $3.692 billion, World group is one of the TOP500 private companies in China and TOP100 companies in Jiangsu Province. Now, World is one of the leading power press manufacturers, the biggest combine harvester manufacturer, the biggest lawn mower manufacturer, and one of the main construction machines manufactures in China.
