Custom c frame press factory longer service life

Place of Origin:
Jiangsu China
Payment:
L/C, T/T
MOQ:
1
Model:
JH21-25L
Brand:
WORLD
Inquiry
Supply Ability
2000 Unit/Units per Year
Start Port
Shanghai China
Material
Metal
Delivery Time
45 days
Certification
CE, CCC
Availability
OEM
Company Advantages
1. The well-designed WORLD makes it more special than other similar products. Processed by sandblasting, it has enhanced fatigue resistance
2. Shanghai Yingxin World Machinery Co., Ltd. has full confidence in the quality of c frame press . It has advantages in internal mechanical performance, such as smooth operation
3. This product has long service life and excellent performance. It is suitable for various kinds of fabrication work, such as the manufacturing of auto parts, household appliances, electronic parts, etc

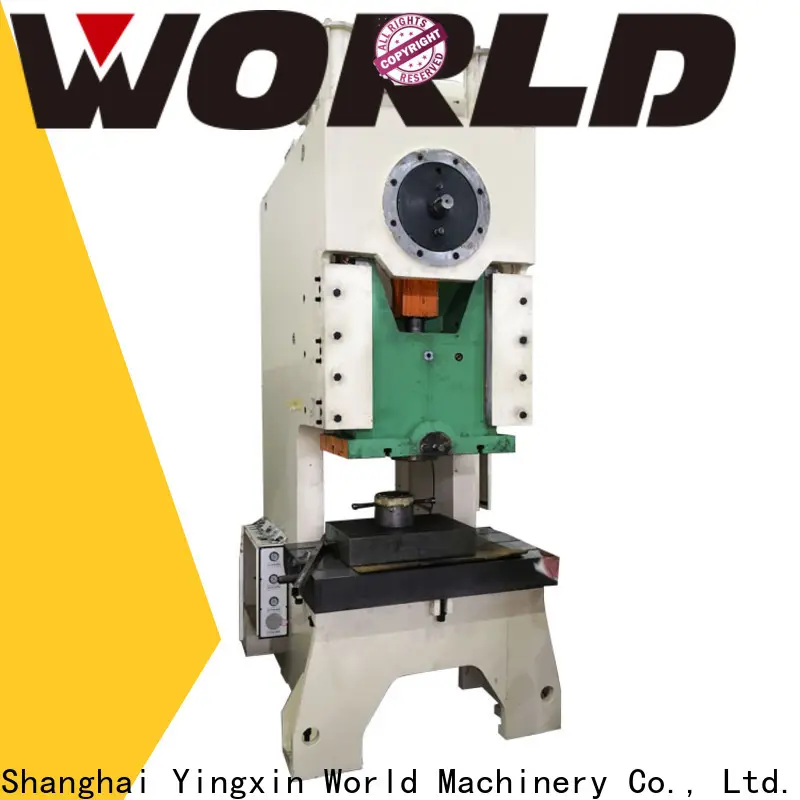

JH21-25L Stroke Variable Power Pressing Machine



                                                               Specification List

Model

JH21-25L

Capacity

kN

250

Nominal Stroke

mm

3

Slide Stroke

mm

10-110

SPM



Fixed

min-1

100

Variable

min-1

80-120

Max. Die Height

mm

250

Die Height Adjustment

mm

50

Throat Depth

mm

210

Between Columns

mm

450

Bolster

LR

mm

700


FB

mm

400


Thickness

mm

80

Bolster Opening

mm

φ170×20

(Up Hole Dia.×Depth×Low Hole Dia.)


×φ150

Slide Area

LR

mm

360


FB

mm

300

Shank Hole

Dia.

mm

φ40


Depth

mm

60

Main Motor Power

kW

4

Dimensions

FB

mm

1500


LR

mm

950


H

mm

2650

Net Weight

kg

3100












Company Features
1. Shanghai Yingxin World Machinery Co., Ltd. owns a professional team of technicians to keep improving our c frame press .
2. In line with our corporate values, we commit to doing business in an ethical, responsible and sustainable way, while giving back to the wider community.
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
