Automatic Unwinding Coiler Sheet Metal Strip Decoiler Uncoiler
The Automatic Unwinding Coiler, also known as a Sheet Metal Strip Decoiler or Uncoiler, is an essential component in metalworking and manufacturing processes. Designed to efficiently feed sheet metal strips into production lines, this machine plays a crucial role in ensuring smooth and uninterrupted material flow.
Equipped with advanced automation features, the Automatic Unwinding Coiler eliminates the need for manual intervention, thereby increasing productivity and reducing labor costs. It is capable of handling various types of sheet metal materials, including steel, aluminum, and copper, with different thicknesses and widths.
The decoiler is designed for quick and easy setup, allowing operators to change coils swiftly and minimize downtime between production runs. Its precise tension control system ensures uniform feeding of the material, preventing distortions and ensuring consistent quality in the final product.
Safety features such as overload protection and emergency stop mechanisms are integrated into the machine to ensure the well-being of operators and prevent accidents in the workplace.
Overall, the Automatic Unwinding Coiler is a reliable and efficient solution for metalworking operations, enabling manufacturers to streamline their production processes and meet their production targets with ease.
PRODUCT SPECIFICATION
WORLD

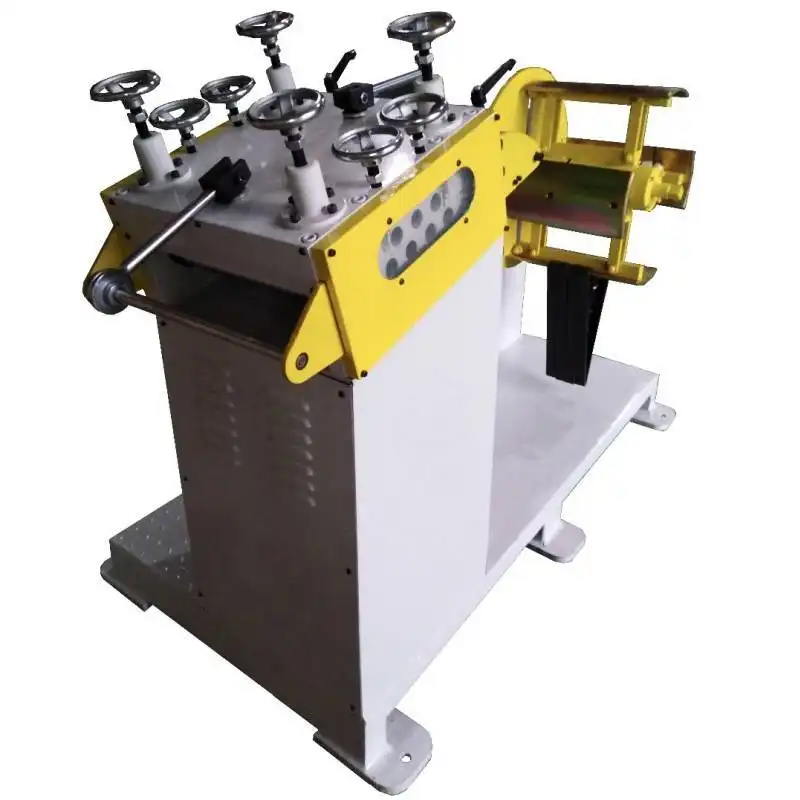

Straightener and decoiler are combined in one machine, reducing the overall dimension,
saving space and reducing feeding error.
All rolls are made of solid bearing steel, have all been quenched, hard-chrome " plated,
high-hardness, strong resistance to abrasion long service life.
The machine adopts air cylinder pressing material, straightening gap adjustment adopts synchronous worm gear,
turning the handle one cycle can adjust the roller height 1mm.
So as to very suitable for thickness material and having a high precision adjustment.
Suit for stamping and processing all kinds of Hardware, Toy, Auto parts,
then feeding and straightening, accurate and durable.
| Model | UL-200A UL-200B GL-200A | UL-300A UL-300B GL-300A | UL-400A UL-400B GL-400A | UL-500A UL-500B GL-500A | UL-600A UL-600B GL-600A | ||
| Material Width(mm) | 200 | 300 | 400 | 500 | 600 | ||
| Material Thickness (mm) | ULA | 0.4-2.2 | 0.4-2.2 | 0.4-2.2 | 0.4-2.2 | 0.4-2.2 | |
| ULB | 0.4-3.5 | 0.4-3.5 | 0.4-3.5 | 0.4-3.5 | 0.4-3.5 | ||
| GLA | 0.5-4.5 | 0.5-4.5 | 0.5-4.5 | 0.5-4.5 | 0.5-4.5 | ||
| Coil I.D (mm) | 450-530 | ||||||
| Coil O.D (mm) | 1200 | ||||||
| Coil Weight(kg) | 500 | 1000 | 2000 | 2000 | 3000 | ||
| Feeding Speed(m/min) | ±0.03 | ||||||
