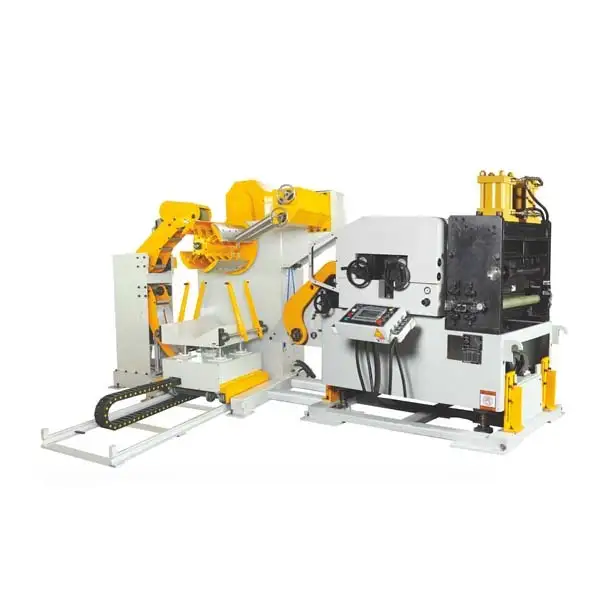

3 in 1 compact automatic sheet metal feeder
PRODUCT SPECIFICATION
WORLD
TNCF4 Specifications:
Item/Mode | TNCF4-300 | TNCF4-400 | TNCF4-500 | TNCF4-600 | TNCF4-700 | NTCF4-800 | TNCF4-1000 | TNCF4-1300 |
| Width of Material(mm) | 75-300 | 75-400 | 75-400 | 75-600 | 75-700 | 75-800 | 75-1000 | 75-1300 |
| Thickness of Material(mm) | 0.5-4.5 | |||||||
| Max.coil Weight(kg) | 2T | 3T | 5T | 8T | ||||
| Coil L.D.(mm) | 508 | |||||||
| Max.Coil O.D.(mm) | 1500 | |||||||
| Feed Pitch Accuracy(mm) | ±0.15 | |||||||
| Feed ROLL | Upper1 / Lower1 | |||||||
| Straighten ROLL | Upper4 / Lower3 | |||||||
| Voltage | 380VAc / 60Hz | |||||||
| Air power supply | 5kg / CM² | |||||||
| Uncoiler Expansion | Hydraulic | |||||||
| Servo Motor(kw) | AC2.9 | AC4.5 | AC5.5 | |||||
| Uncoiler Motor(kw) | 1.5 KW | 2.2 KW | 3 KW | |||||
| Coil Car | 1 optional | standard | ||||||
| Pass line | ±100 MM | |||||||
TNCF5 Specification :
| Item/Model | TNCF5-400 | TNCF5-500 | TNCF5-600 | TNCF5-700 | TNCF5-800 | TNCF5-1000 | TNCF5-1300 | TNCF5-1500 |
| Width of Material(mm) | 75-400 | 75-500 | 75-600 | 75-700 | 75-800 | 75-1000 | 75-1300 | 75-1500 |
| Thickness of Material(mm) | 0.6-6 | |||||||
| Max.coil Weight(kg) | 3T | 5T | 8T | |||||
| weight can be customized | ||||||||
| Coil L.D.(mm) | 508 | |||||||
| Max.Coil O.D.(mm) | 1500 | |||||||
| Max.Speed(m/min) | 16 | |||||||
| Feed Pitch Accuracy(mm) | ±0.15 | |||||||
| Feed ROLL | Upper1 / Lower1 | |||||||
| Straighten ROLL | Upper4 / Lower3 | |||||||
| Voltage | 380VAc / 60Hz | |||||||
| Air power supply | 380VAc / 60Hz | |||||||
| Uncoiler Expansion | Hydraulic | |||||||
| Servo Motor(kw) | AC2.9 | AC4.4 | AC5.5 | AC7.5 | ||||
| with servo reducer | ||||||||
| Uncoiler Motor(kw) | 1.5 KW | 2.2 KW | 3 KW | |||||
More than 30 years experiences, professional R&D team and production team.
3 years warranty for the self-produced wet type pneumatic clutch.
Quick delivery: 10 days for standard machines and 30 days for customized order.
About 80% parts are self-produced. Buyer can get the right parts in farther future.
Bigger manufacturer can provide more assurance for quality and future service.
